Lithography Processes

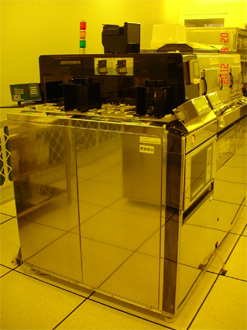

◆6" wafer Automatic P.R. coating track

Machine: DNS DA-60A
Application: Photo resist coating

• Substrate size: 6"
• Coating of Positive resists : 10 μm to 25 μm.
• Coating of positive resists, including soft bake.
• Uniformity: < ± 5% within wafer
• Capacity: 10k pieces/month

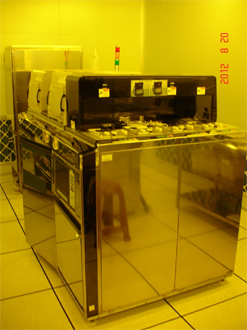

◆6" wafer Automatic P.R. developing track

Machine: DNS DA-60A
Application: P.R. developing

• Substrate size: 6"
• Development of positive resists, including hard bake.
• Coating of positive resists, including soft bake.
• Uniformity: < ± 5% within wafer
• Capacity: 10k pieces/month

◆Automatic low k material coating line

Machine: DNS SKW-636
Application: Low k material coating

• Substrate size: 6”
• Coating material: P.I. or BCB.
• Coating of ILD : 3 μm to 10 μm.
• Coating of ILD, including developer.
• Uniformity: < ± 5% within wafer
• Capacity: 10k pieces/month

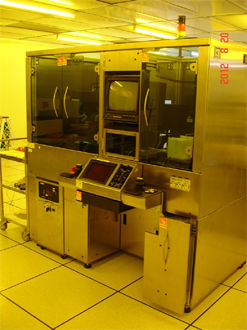

◆Automatic exposure systems

Machine: Suss Mask Aligner MA200
Application: Photo Resist exposure

•Substrate size: 6".
• CD 2 μm, Overlay ± 2um (Topside)
• Expose mode: Soft contact, proximity expose possible
• Capacity: 10k pieces/month
